Premium Kingsman 36" Zero Clearance Direct Vent Gas Fireplace - ZCV3622

Experience the beauty and coziness of flickering flames and radiant embers with our classic oak log set. It will undoubtedly become the centerpiece of your household. Select from multiple decorative choices to create a unique look and feel, while also prioritizing safety, comfort, and long-term worth.
Elevate your home with the Kingsman 36" Gas Fireplace. Choose between a reliable millivolt or advanced intermittent pilot ignition system for efficient heating. With hi-low heat and flame adjustment, a standing pilot for power outages, and energy conservation, this fireplace offers both convenience and luxury.

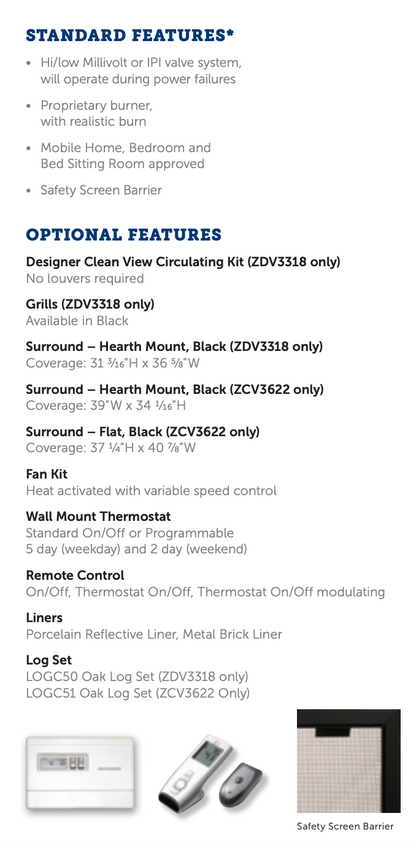

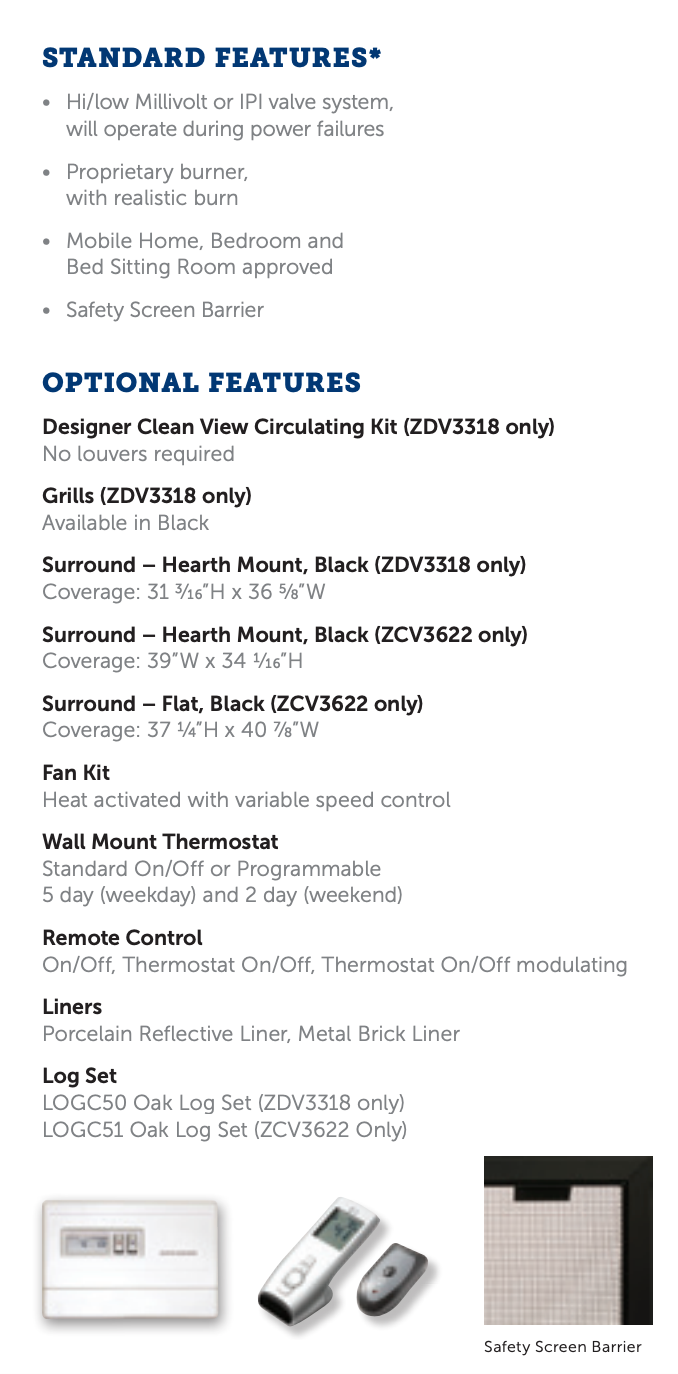

• Hi/low Millivolt or IPI valve system, will operate during power failures
• Proprietary burner, with realistic burn
• Mobile Home, Bedroom and Bed Sitting Room approved
• Safety Screen Barrier
• Fuel Type: Propane Gas, Natural Gas
• Proprietary burner, with realistic burn
• Efficiency Rating: 61.7% NG / 63.2% LP



Model	ZCV3622N/NE	ZCV3622LP/LPE
Fuel	Natural	Propane
Flue	Top	Top
Gas Control	Millivolt / IPI	Millivolt / IPI
Input Max.	18,000 BTU	18,000 BTU
Input Min.	13,000 BTU	15,000 BTU
FE (p.4.1-02)%	60.54% / 63.46%	62.09% / 65.09%
Flue Sizes	4/7"	4/7"
Glass Size	31 3/4"W x 20 7/16" H	31 3/4"W x 20 7/16" H
Glass Type	Tempered	Tempered
Size (WxHxD)	36"W x 37 1/8"H x 17 7/16"D	36"W x 37 1/8"H x 17 7/16"D
Viewing Area	29 3/4"W x 18 5/8"H	29 3/4"W x 18 5/8"H
Venting	4/7" Flex or 4 x 6 5/8 Hard Pipe* or Power Vent	4/7" Flex or 4 x 6 5/8 Hard Pipe* or Power Vent
Electronic Ignition	Yes	Yes
Certification	Heater	Heater
Bedroom Approved	Yes	Yes

CA Residents: See Prop 65 WARNING

DOWNLOADS

• Product Brochure
• Install/Owner's Manual

Now available with enhanced quality and crafted for lasting performance.
